Bayrol Automatic Cl-pH


We offer an installation and set-up service on this product. Please contact us for a quotation including install from our trained professionals.

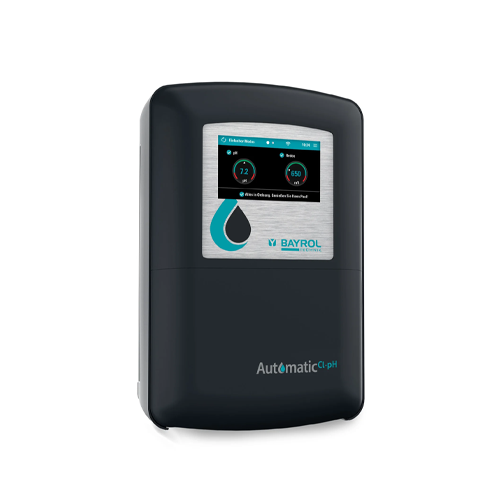

The new Bayrol Automatic Cl-pH takes over the automatic measurement of pH and chlorine disinfection and controls the dosing of the necessary water care products as needed. This dosing system is perfect for pools up to 90m³. With built-in WiFi the Automatic dosing system allows for remote access via any enable device.

The Bayrol Automatic Cl-pH is equipped with the new Smart & Easy technology, which automatically adapts the reactions of the device to the needs of your pool. The sophisticated intelligence of the Smart & Easy technology supports you in every situation, making operation as easy as possible. The Automatic offers complete pool water care and a large intuitive touch screen for a user-oriented interface with easy navigation and visual and acoustic warning.

Developed and manufactured by Bayrol Technik in Germany. Benefit from strict quality controls throughout the production chain, from mechanical and electronic components to assembly. With Bayrol Automatic Cl-pH, setting a perfect pH value and the exact dosage of disinfectant is child’s play.

  • Smart&Easy Technology
    Easy to use, whether you’re a novice or an expert

    • Simple commissioning and reliable operation with visual and audible warnings.
    • User-friendly, intuitive interface with a large 4.3″ touchscreen.
    • Intelligent software functions, such as first-time commissioning wizard and step-by-step instructions in the event of warning messages.
  • Integrated WiFi module

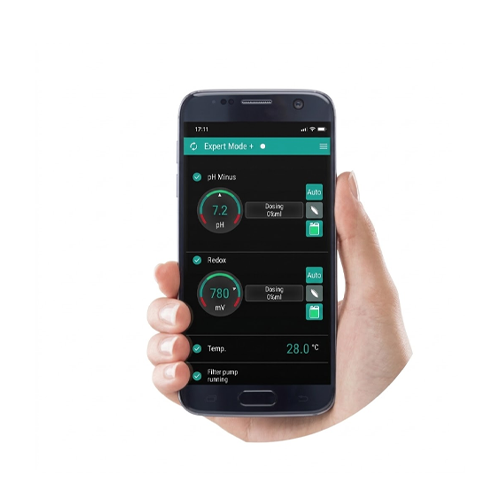

    Control Automatic Cl-pH remotely

    • Comes as standard with an integrated WiFi module for remote control via Smartphone or PC.
    • Full access to settings and total control of your pool, even on the move.
  • Precise analysis & dosing
    Ensures exact dosing of required quantities at all times

    • Accurately analyzes and doses pH and chlorine (via redox measurement).
    • Ensures stable water balance and safe disinfection with optimum disinfectant content.
    • Chloriliquide and pH-Minus Liquid are injected by powerful, silent dosing pumps.


  • Continuous measurement of pH and Chlorine (via Redox)
  • Low-noise peristaltic dosing pumps
  • Dosage of pH-Minus Liquid Domestic or pH-Plus liquid
  • Dosage of Chloriliquide*
  • 4.3″ touch screen, user-oriented graphical user interface, simplified navigation
  • Integrated WiFi module for remote access
  • USB port for updates
  • Simple electrical installation due to tool-free plug connections
  • Level monitoring of the dosing liquids (suction lances available as option)
  • Water temperature display (optional extra)

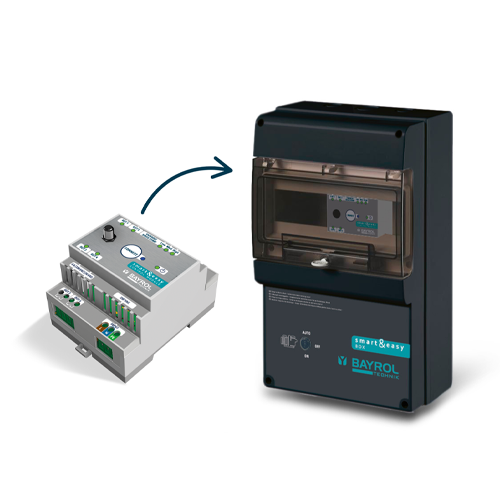

  • Compatible with Smart&Easy Connector (optional) – a practical connector for easy installation of the sensors, the injection valves and the included flow switch.

Technical Data:

Display 4.3″ TFT colour touchscreen, 32bit microprocessor,
enhanced graphic acceleration.
Regulation Adaptive proportional control
Measurement of pH value Single-rod sensor, BNC
Measuring range pH 0 – 10,0
Measurement of redox value Single-rod sensor, BNC
Measuring range Redox 0 – 999 mV
Sensor cable length 2.5 m
Max. pump pressure 1.5 bar
Max. pump flow rate 2.4 l/h
Electrical connection 240 V~, 50/60 Hz
Power consumption Controller max. 10 W,
Dosing pumps max. 2x 8 W
Protection rating, controller IP 65
Operating temperature 0 °C – 40 °C
Dimensions of the controller 325 x 210 x 94 mm (H x W x D)
Weight of the controller Approx. 1.9 kg

What’s in the Box?

pH sensor with sensor holder
Buffer solution pH 7
Redox sensor with sensor holder
Buffer solution 465 mV
Cleaning solution for sensors
Injection valve for pH dosing
Injection valve for Chloriliquide dosing
Saddle clamps, Ø 50 mm (for sensor holders and injection valves)
Suction hose for dosing pump, 2m each
Injection hose for dosing pump, 5m each
Wall Mounting Kit



3 Years warranty on controller and cell
