Bayrol PoolRelax® System

RRP: £3,999.99


Professional Installation Essential Icon

Professional Installation is required for this BAYROL dosing system. Please call for a quote including installation from our trained professional. We also provide continuous aftercare.

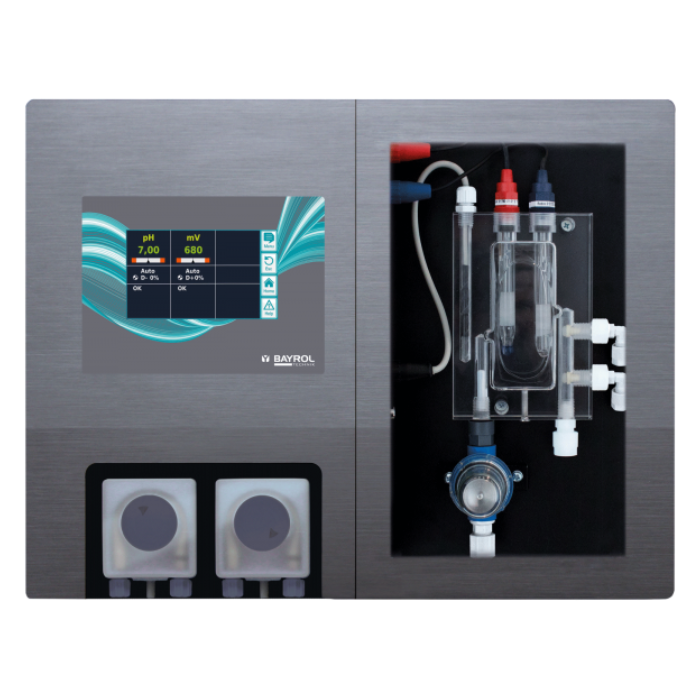

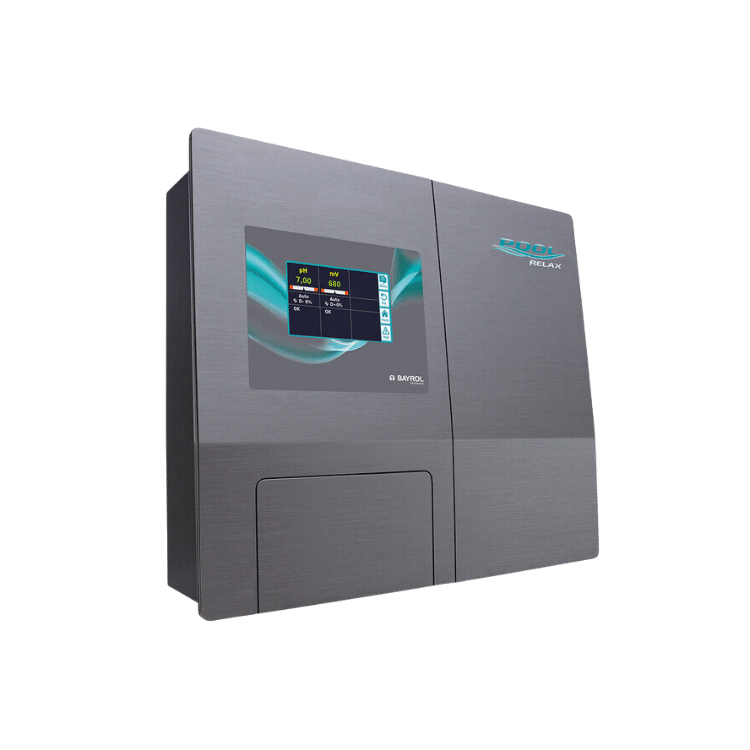

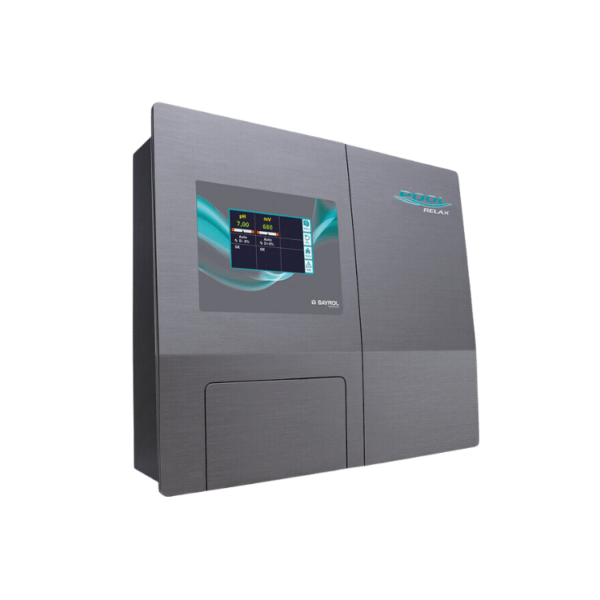

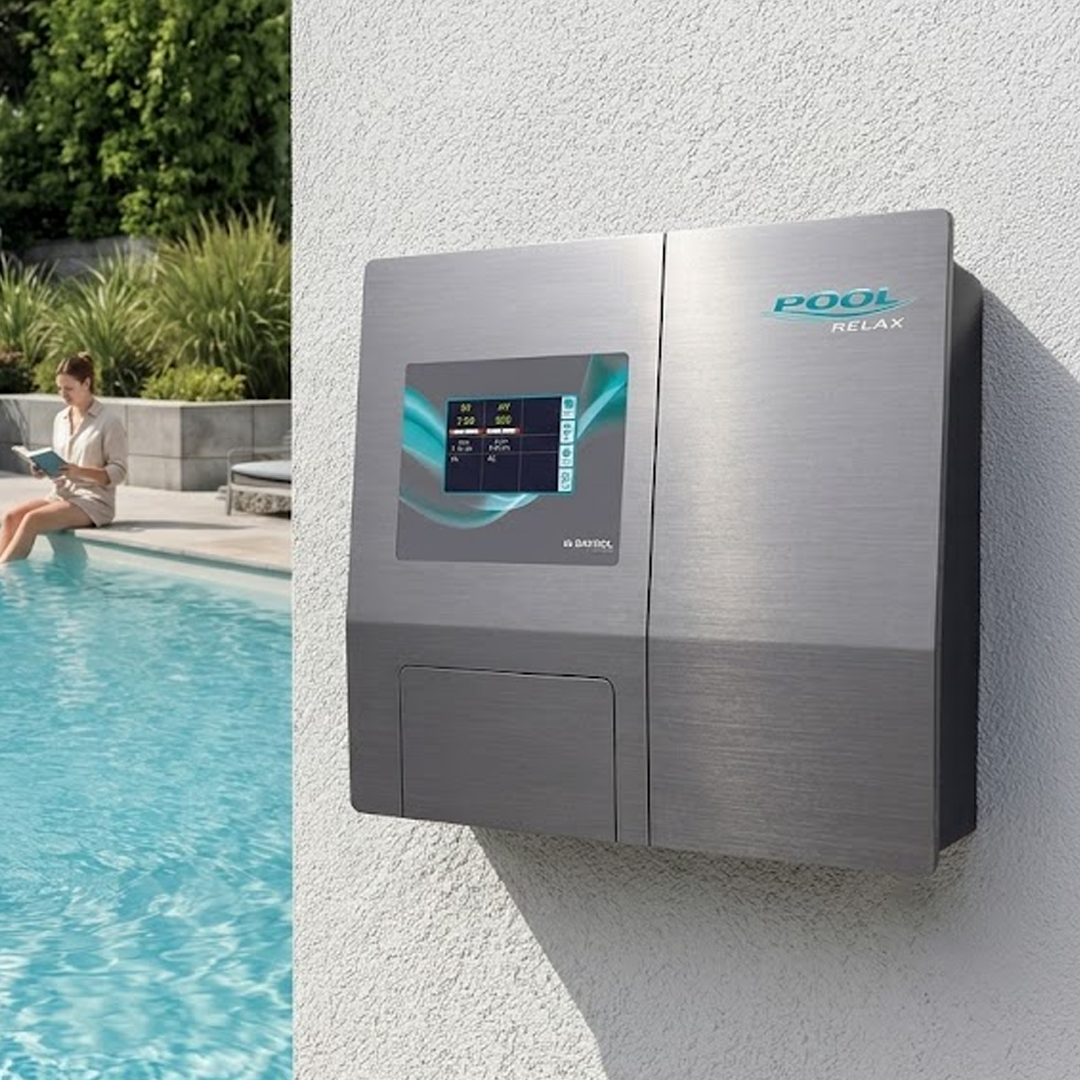

The Bayrol PoolRelax® System is an automatic dosing system, designed for both pools and spas. Using the latest high-tech testing technology the PoolRelax monitors and controls the automatic dosing of pH and your disinfectant with chlorine, active oxygen or bromine (additional items may be required for non-chlorine systems). The automatic testing and dosing removes unwanted chemical spikes and keeps your chemicals at an optimum level. Although all integral components are surrounded by a protective cover they are easily accessible for maintenance.

Bayrol PoolRelax Automated Dosing System | Blue Cube Direct

Through its up to 4 switching outputs, additional functions such as the pool lighting, a waterfall or the heat pump can be controlled from the Bayrol PoolRelax. Achieve perfect water quality easily and conveniently with the Pool relax system, spend more time enjoying your pool or spa and less time worrying about correct dosing levels. Let the Pool relax do the hard work so you can relax.

You can also operate the Bayrol PoolRelax® System remotely through the optional web module. This means you can access the pool management system on any mobile or tablet screen in the house through wifi.


Safe and precise water maintenance
High-precision measuring probes ensure accurate and reliable measurement. In case of deviations beyond the limit values or other undesirable events, the PoolRelax informs with acoustic and optical signals on the device.

Convenient and simple operation
The large 4.3″ touch display with backlight allows easy reading and particularly simple operation of the PoolRelax®.

Switching functions
The PoolRelax includes 4 switching outputs, which can be used flexibly for switching pool functions such as waterfall or pool lighting. Optionally, 4 more switching outputs can be added with the web module.

Reliable technology
Made in Germany.

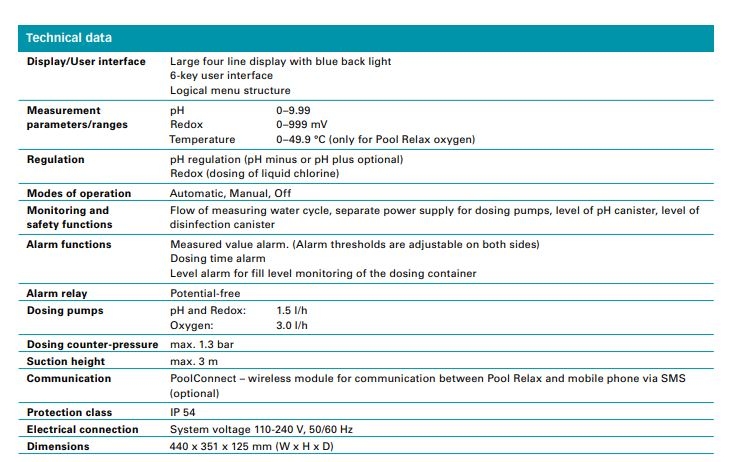

Technical Data:

  •  PoolRelax® Chlorine
  •  PoolRelax® Oxygen
  •  PoolRelax® Bromine
Measured variables/ranges
  • pH 0-9.99
  • Redox 0-999 mV
  • Temperature 0-49.9 °C (only for PoolRelax® Oxygen)
  • Large 4.3″ touch display with backlight
  • Easy-to-read and intuitive menu
Monitoring and safety functions
  • Event log logs events or changes
  • Monitoring flow rate sample water circuit
  • Separate power supply for metering pumps
  • Container level monitoring
  • Measured value alarm
  • Dosing time alarm
Switching functions
  • 4 switching outputs
  • For switching pool functions such as a waterfall or pool lighting
Optional Extras
  • Remote control via the Internet using web module (optional)
  • 440 x 351 x 125 mm (W x H x D)


Additional information






Chlorine, Bromine, Oxygen
