Description

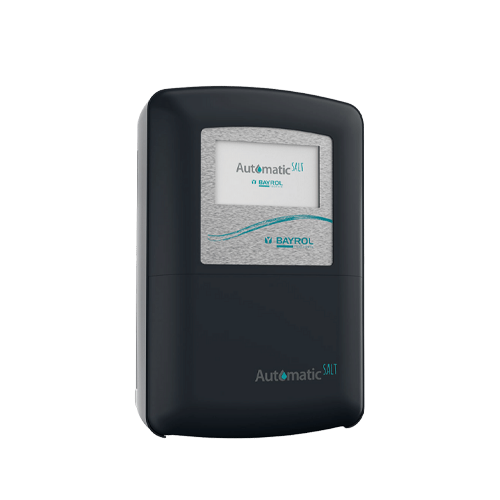

The Bayrol Automatic Salt is the smart salt electrolysis product from the research and development work of Bayrol Technik, produced and developed in Germany. It regulates the production of chlorine from the salt dissolved in the water, and it also measures and regulates the pH, which ensures a safe, sustainable, and more environmentally friendly treatment of your pool water: optimal water quality without the risk of overdose.
The Smart & Easy technology makes Automatic Salt an ideal companion to give you an undisturbed and safe bathing pleasure. The large display and the menu navigation, which is easy to understand even for inexperienced users, leave nothing to be desired in terms of operation. Automatic Salt has intelligent software functions, such as the initial commissioning wizard, which helps you define the essential parameters of the device easily. In operation, this also gives useful tips for occurring status messages.
Automatic Salt isn’t only a salt chlorinator, it automatically and precisely analyses the pH value and the chlorine content (redox) and regulates them by injecting liquid pH and by generating free chlorine with the help of salt electrolysis. This ensures a stable water balance and thus enables a steady disinfection performance with the optimal chlorine content. The electrolysis cell can also produce free chlorine from a salt content of only 1.5 g/l and the technical and high-quality design makes it easy to integrate into the existing pool system.

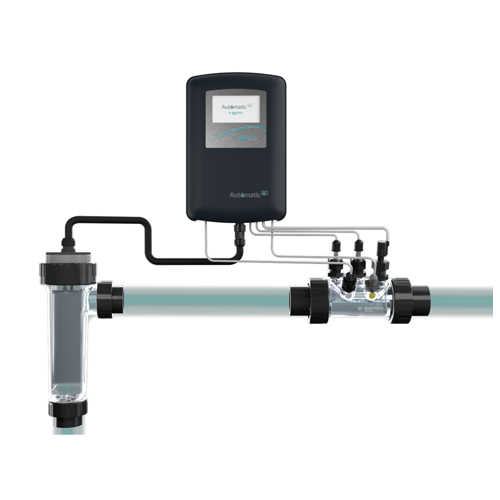

In combination with the included Smart & Easy Connector, the Bayrol Automatic Salt is completed. This enables easy installation of all sensors and is compact and space saving. The integrated flow switch and temperature sensors provide additional safety and pool information on the device.

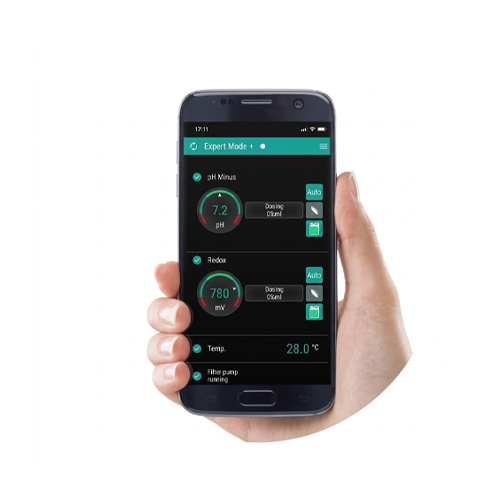

The Bayrol Automatic Salt is equipped with an integrated WiFi module as standard, that allows convenient remote access to the pool water parameters via a smartphone or any other Internet-enabled device. The remote access allows not only a reading of the measured values but also full access to the settings – so you have your pool water quality fully under control even on the go.
For even more far-reaching automation of water care, Automatic Salt can be equipped with an optional premium suction lance with a canister level sensor: The level sensor reports an empty canister promptly and reliably. The fill level is also visualized on the device display as an icon and can therefore be checked through the device remote access. All of this makes the Automatic Salt one of the most reliable salt chlorinators available today.
Features:
- Complete electrolysis system with continuous measurement and control of pH and disinfectant (redox)
- Operates from 1.5 g/l of salt
- 4.3″ touch screen, user-oriented graphical user interface, simplified navigation
- Integrated WiFi module for remote access
- Continuous measurement and display of temperature and salt content
- Protection by paddle flow sensor and gas detector
- Contact input for pool cover
- Contact input for pH-Minus suction low-level switch
- USB port for updates

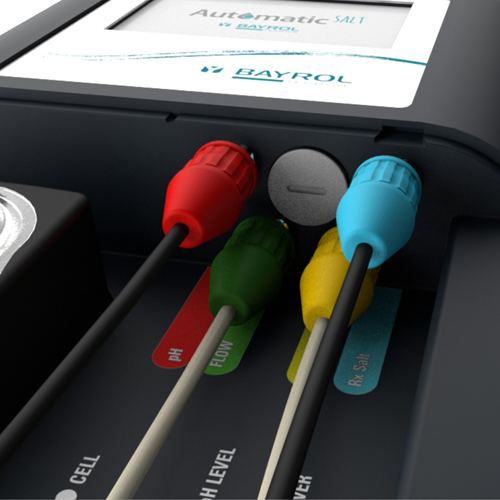

- Tool-free electrical connections with connectors
- Transparent cell holder, installation with Ø 50 mm fittings
- Vertical or horizontal cell installation
- Smart&Easy Connector, inline analysis and dosing chamber
Maximum Pool Volume:
| Automatic Salt AS 5 | Automatic Salt AS 7 | |
|---|---|---|
| Salt rate | 2.0g/l – 3.5g/l | 2.0g/l – 3.5g/l |
| Temperature < 28 °C | 70m³ – 80m³ | 90m³ – 140m³ |
| Temperature > 28 °C | 45m³ – 55m³ | 65m³ – 110m³ |
Indicative values based on our experience, with a stabiliser level between 30 and 50 mg/l based on our experience with normal use, sufficient filter running time and with a sibiliser level between 30 – 50 mg/l.
Technical Data:
| Display | 4.3″ TFT Touchscreen |
| Electronics | 32-bit microprocessor, advanced graphics acceleration |
| Salt level | 1.5 – 40 g/l (sea water ready) |
| Production modes | Auto, Auto Plus, Constant Production, Safe, Pause, Boost |
| Automatic cell cleaning | Adjustable polarity inversion, |
| Measuring range Redox | Horizontal installation: 4.5 m³/h – 30 m³/h; Vertical installation: 5.5 m³/h – 30 m³/h |
| Flow control | Paddle flow switch, gas detector in the cell |
| Dimensions, electrolysis cell | 380 x 170 mm (with Ø 50 mm fittings) |
| Cable length, electrolysis cell | 2.0 m |
| Max. pressure of electrolysis cell | 3.5 bars |
| Cable length, sensors | 2.5 m |

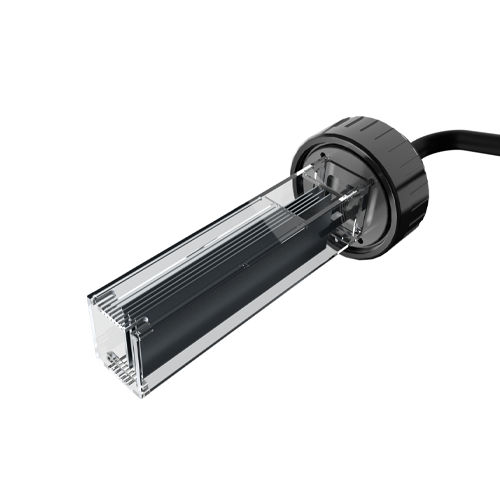

| Cell material | Titanium, ruthenium/iridium coating |
| Permissible water temperature | 1 °C – 45 °C |
| Temperature measurement | PT1000 sensor, PVC, BNC |
| pH measurement | Combined pH sensor, BNC |
| ORP measurement | Combined Redox sensor, BNC |
| Salt level measurement | Titanium electrodes for conductivity measurement (accuracy of approx. 5 %) |
| Power supply | 240 V~, 50/60 Hz |
| Power consumption | 160 W |
| Protection index, controller | IP 65 |
| Weight, controller | approx. 4.3 kg |
| Dimensions, controller | 325 x 210 x 120 mm (width x height x depth) |
What’s in the Box?
✓ Automatic SALT controller
✓ Electrolysis cell 5 or 7 plates
✓ Smart&Easy Connector
✓ Flow detector
✓ Temperature sensor
✓ pH sensor
✓ Redox sensor
✓ Sensor holders (x2)
✓ pH injection valve
✓ pH suction strainer
✓ pH suction hose
✓ pH injection hose
✓ pH7 and 465 mV buffer solutions
✓ Sensor cleaning solution

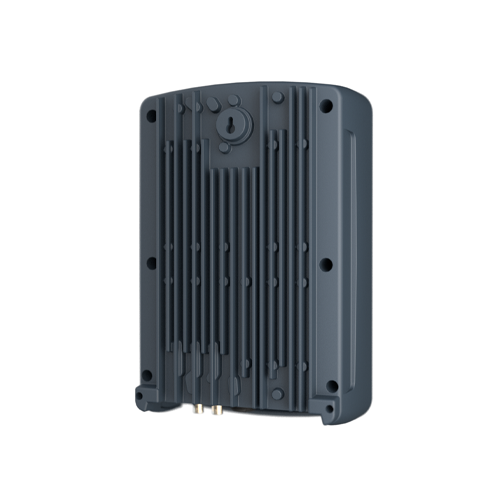

✓ Wall mounting kit
✓ User manual
Downloads:
Warranty:
3 Years warranty on controller and cell
