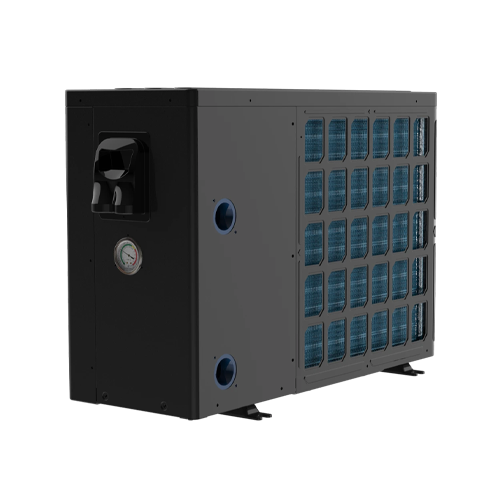

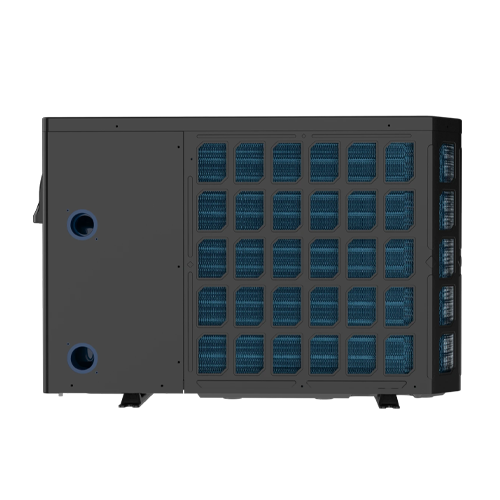

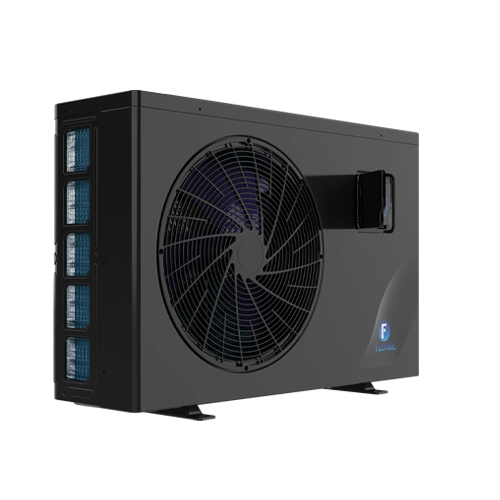

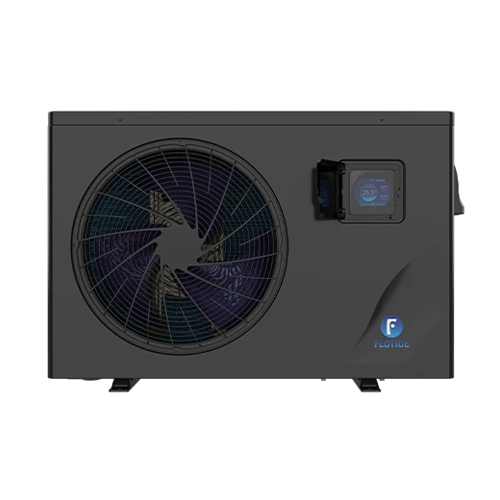

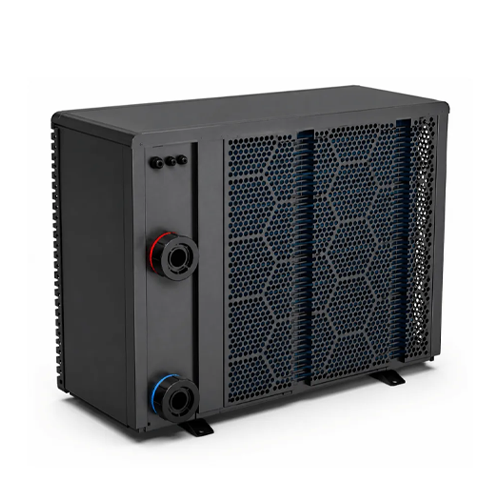

Flotide 9/32 Inverter Heat Pump

Description

Flotide 9/32 Selection & Quick Reference Guide

A compact, high-efficiency inverter heating system engineered for medium to large residential pools, wooden pools, and larger above-ground frame pools.)

Fast Buyer’s Guide & Pool Compatibility

• Target Application: Perfectly matched to residential swimming pools, wooden pools, and large above-ground frame pools between 25,000 and 45,000 litres requiring higher-output inverter heating.

• Price & Efficiency Value: An accessible inverter heat pump that eliminates complex installation setup costs. Replacing an older electric flow heater with this 6.5 kW stepped-inverter model cuts ongoing swimming pool energy bills by up to 70 to 80 percent.

• Physical Footprint: Compact horizontal layout with combined ABS and stainless steel construction. Fits comfortably on outdoor patios or alongside garden decking next to your existing filtration setup.

• Plumbing Adaptations Required: Supplied with standard 50 mm glue socket unions. If your pool uses standard 32 mm or 38 mm flexible hoses, simply add two 50 mm to 32/38 mm stepped hose adapters to connect to your existing pump and filter.

Energy-Efficient Step-Inverter Performance

Heating pools between 25 m³ and 45 m³ does not require high installation expenses or excessive electricity bills. The Flotide 9/32 Inverter Heat Pump brings variable-speed thermal regulation into a practical format. Pre-wired with a standard UK 3-pin mains plug, it connects directly into an RCD-protected outdoor socket to start warming your pool efficiently. Unlike traditional fixed-speed heaters, step-inverter technology automatically adjusts compressor output and fan speeds between pre-set levels based on real-time water conditions. Once your target temperature is reached, the unit throttles back to maintain warmth quietly while drawing minimal electrical power.

Durable ABS & Stainless Steel Cabinet

Built with a UV-stabilised ABS casing complemented by stainless steel structural components, the Flotide 9/32 resists harsh UK weather year-round. Inside, a pure titanium heat exchanger provides complete immunity against chemical erosion from chlorine, bromine, and salt chlorination systems. Its horizontal airflow design directs exhaust air away from surrounding patio seating areas.

Eco-Friendly Performance Down to Low Ambient Temps

Utilising low-GWP R32 refrigerant gas, this unit delivers high-efficiency heat exchange across variable ambient conditions down to sub-zero outdoor temperatures. Built-in automated defrost routines ensure uninterrupted warmth throughout the spring, summer, and autumn months.

Professional Setup Services

Blue Cube Direct offers complete setup support for custom bypass plumbing and system commissioning. You can request guidance or booking directly via our Professional Installation and Setup Available link.

Key Technical Specifications

• Recommended Pool Capacity: 25 m³ to 45 m³ (25,000–45,000 litres)

• Heating Capacity Range: 1.2 kW to 6.5 kW (at Air 15°C / Water 25°C)

• Power Supply & Connection: 230V Single Phase with pre-wired UK 3-Pin Mains Plug (9.9A max current)

• Compressor Technology: Step-inverter rotary compressor

• Heat Exchanger: Pure titanium coil inside corrosion-proof PVC housing

• Refrigerant Gas: Eco-friendly R32

• Hydraulic Connections: 50 mm solvent socket unions

• Cabinet Construction: Weatherproof UV-stabilised ABS with stainless steel reinforcement

• Turnkey Setup Service: Professional Installation and Setup Available across the UK

Installation & Operating Guidelines

1. Choose Your Setup Option: Connect the pre-wired plug to an outdoor socket and plumb the water connections yourself, or request our turnkey service via Professional Installation and Setup Available.

2. Base Placement: Mount horizontally on a firm, level outdoor concrete or timber base, leaving at least 30 cm clear space behind the air intake grille.

3. Plumbing Integration: Plumb into the pool filtration return line down-line from your filter pump using a standard 3-valve bypass kit.

4. Pipe Adaptations: Connect directly to 50 mm rigid PVC pipework, or attach 50 mm to 32/38 mm stepped hose adapters if connecting to flexible above-ground pool hoses.

5. Electrical Connection: Plug directly into an RCD-protected outdoor 230V 13A mains socket.

6. System Startup: Ensure your filtration pump is running and water is circulating before powering on the heat pump display.

Frequently Asked Questions

What size pool is the Flotide 9/32 designed for?

The 9/32 model is sized specifically for medium to large residential pools and above-ground family pools from 25 m³ to 45 m³ (25,000 to 45,000 litres).

Can I connect this heat pump into a normal garden socket?

Yes. The UK model variant is factory-supplied pre-wired with a standard UK 3-pin plug for connection into an RCD-protected outdoor 230V mains socket.

What adapters are needed for above-ground pool hoses?

The heat pump includes standard 50 mm solvent unions. If your above-ground pool uses 32 mm or 38 mm flexible hoses, you will need two 50 mm to 32/38 mm stepped hose adapters to complete the plumbing connection.

Do you offer professional installation for pool heat pumps?

Yes. We offer complete setup, bypass plumbing, and system commissioning across the UK. You can request this via our Professional Installation and Setup Available link.
