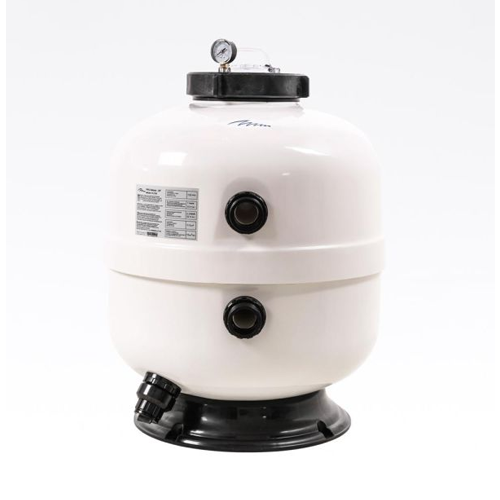

PPG Filter Deluxe Side Mount Swimming Pool Sand Filter

Description

PPG Filter Deluxe Sizing & Quick Reference Guide

Buyer’s Guide & Construction Quality

• Engineered Hybrid Build: Combines manufacturing technologies from two leading filter specialists to create a vessel built to public and commercial sector standards.

• Reinforced Tank Shell: Extra reinforcement applied at all critical pressure points to handle up to 2.5 bar working pressure safely.

• Industrial Floor Mount: Features a large, sturdy molded base that ensures complete stability during heavy pump operation and backwashing cycles.

• Professional Installation: To ensure your filtration system, pipework connections, and multiport valve are correctly plumbed and pressure-tested, call our technical desk before ordering to book full installation and commissioning by our qualified pool engineers.

Improved 10″ Transparent Inspection Lid

The filter tank includes an upgraded 10-inch transparent inspection lid secured by a fibreglass-reinforced quick-closing lock ring. The clear cover is fitted with an integrated internal light, allowing you to monitor the backwash process in real time to verify when the filter bed is fully cleansed. The lid assembly also houses a manual air relief valve and a pressure gauge for accurate system monitoring.

Herringbone Distribution & Dual Drain System

Unlike standard laterals, the bottom distribution manifold uses a unique herringbone lateral layout. This design eliminates flow dead spots, directing water evenly across the entire surface area of your silica sand or AFM glass filter media. A large double drain plug at the base allows you to drain water independently or discharge both water and filter media simultaneously during media changes.

Multiport Valve & Automation Ready

Each filter is supplied complete with a side-mounted manual 6-way multiport valve. The system is also designed for straightforward integration with Besgo automatic backwash valves for fully automated filter maintenance.

Key Technical Specifications

• Vessel Construction: Polyester reinforced fiberglass with critical point reinforcement

• Operating Pressure: Maximum 2.5 bar working pressure

• Lid Assembly: 10″ clear lid with integrated light, deaeration valve, pressure gauge, and fibreglass quick-lock ring

• Internal Hydraulics: Smart herringbone distribution laterals and diffuser with large inlet opening

• Drainage: Large double bottom drain plug (separate water or combined water/media discharge)

• Multiport Valve: Side-mount manual 6-way valve included (Besgo automatic valve compatible)

• Warranty: 5 Years Manufacturer Warranty

Installation & Professional Setup Services

1. Pre-Order Installation Booking: We provide full professional installation and setup. Please call our team before placing your order so we can review your plant room space, pipework sizes (1.5″ or 2″), and schedule an engineer visit.

2. Media Loading: Ensure the tank is filled one-third with water before pouring in media (gravel/sand or AFM glass) to cushion the internal herringbone laterals.

3. Pipework Connection: Connect your suction and return lines to the 1.5″ or 2″ side-mounted multiport valve ports using suitable solvent weld pressure pipe fittings.

4. Commissioning: Prime the system, perform an initial backwash to rinse new media, and check the clear 10″ lid light to verify clarity.

Frequently Asked Questions

Can Blue Cube Direct install the PPG Filter Deluxe for me?

Yes. We offer professional setup and installation services. Please call our technical line prior to placing your order so we can confirm site requirements and coordinate the installation.

What is the benefit of the integrated light in the filter lid?

The small light inside the transparent 10-inch lid lets you observe water clarity during the backwash cycle without opening the vessel, letting you know exactly when the media bed is clean.

What filter media can be used in this filter?

The PPG Filter Deluxe accepts standard 16/30 grade silica sand and gravel, as well as active filtration glass media such as AFM 1, AFM 2, and AFM 3.
