PPG Side Mount Filter Sizing & Quick Reference Guide
| Feature / Metric | Model 510 | Model 620 | Model 750 | Model 900 |
| Model Code | 1564253251 | 1564253260 | 1564253275 | 1564253290 |
| Diameter | 510 mm | 620 mm | 750 mm | 900 mm |
| Height | 790 mm | 860 mm | 1020 mm | 1020 mm |
| Flow Rate (@ 50 m3/h/m2) | 10.2 m3/h | 15.1 m3/h | 22 m3/h | 31.8 m3/h |
| Flow Rate (@ 30 m3/h/m2) | 6 m3/h | 9 m3/h | 13.2 m3/h | 19.2 m3/h |
| Connection Size | 1.5″ Female | 1.5″ Female | 2″ Female | 2″ Female |
| Filter Area | 0.2 m2 | 0.3 m2 | 0.44 m2 | 0.64 m2 |
| Dry Tank Weight | 18 kg | 23.5 kg | 33 kg | 42 kg |
| Sand / Gravel Media Load | 4 / 1 Bags (25kg) | 7 / 2 Bags (25kg) | 11 / 3 Bags (25kg) | 16 / 6 Bags (25kg) |
| AFM Grade 1 / 2 / 3 Load | 3 / 2 Bags (21kg) | 5 / 4 Bags (21kg) | 8 / 7 Bags (21kg) | 11 / 6 / 5 Bags (21kg) |
Construction Quality & Design Features
-
Two-Part White Polyester Build: Manufactured using durable polyester-reinforced materials in a clean modern white finish.
-
Pressure Specifications: Engineered for a maximum working pressure of 2.5 bar, factory tested to 3.75 bar for maximum safety and durability.
-
Folding Diffuser: Features an innovative folding diffuser designed to simplify media loading and provide effortless access to internal parts.
-
Professional Installation: To ensure your pipework, valve placement, and pressure testing are done correctly, call our technical desk before ordering to book full installation and setup by our qualified engineers.
Construction Quality & Design Features
-
Two-Part White Polyester Build: Manufactured using durable polyester-reinforced materials in a clean modern white finish.
-
Pressure Specifications: Engineered for a maximum working pressure of 2.5 bar, factory tested to 3.75 bar for maximum safety and durability.
-
Folding Diffuser: Features an innovative folding diffuser designed to simplify media loading and provide effortless access to internal parts.
-
Professional Installation: To ensure your pipework, valve placement, and pressure testing are done correctly, call our technical desk before ordering to book full installation and setup by our qualified engineers.
200mm Inspection Lid & Valve Equipment

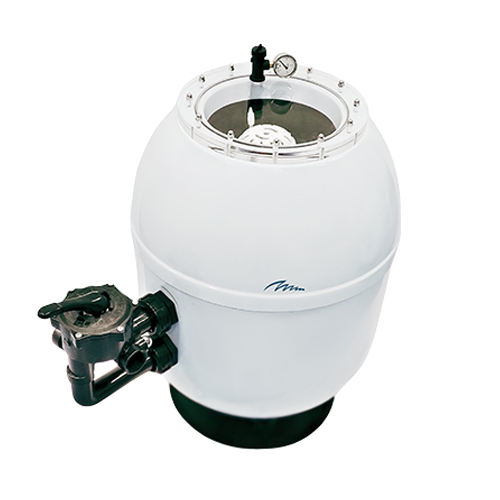

The filter tank features a large 200mm transparent screw-connection inspection lid, complete with an integrated 1/4″ drain plug. Each unit is supplied with a manual Praher 6-way multiport valve, an internal vent designed to clear trapped air from the filter pipes, and a clear pressure gauge.
Key Technical Specifications
-
Vessel Construction: Two-part polyester reinforced fiberglass in modern white
-
Operating Pressure: Maximum 2.5 bar (Tested to 3.75 bar)
-
Lid Assembly: 200mm transparent screw lid with 1/4″ drain plug
-
Internal Components: Folding diffuser for simple media loading and part access
-
Multiport Valve: Manual Praher 6-way valve supplied with integrated internal pipe vent and pressure gauge
-
Warranty: 5 Years Tank Warranty
Installation & Professional Setup Services
-
Pre-Order Installation Booking: We provide full professional installation and setup. Please call our team before placing your order so we can review your plant room space, pipework layout, and schedule an engineer visit.
-
Media Loading: Utilize the folding diffuser mechanism to easily load your selected sand/gravel or AFM glass media loads according to the size specification table above.
-
Valve Connection: Connect your system lines to the supplied manual Praher 6-way multiport valve.
-
Commissioning: Prime the system, run an initial backwash cycle, and check the internal vent and pressure gauge to ensure correct operation.
Frequently Asked Questions
Can Blue Cube Direct install the PPG Side Mount Filter for me?
Yes. We offer professional setup and installation services. Please call our technical line prior to placing your order so we can confirm site requirements and coordinate the installation.
What multiport valve is included with this filter?
The filter is supplied complete with a manual Praher 6-way valve, featuring an integrated internal pipe vent and pressure gauge.
What filter media can I use with the PPG Side Mount?
The filter accepts standard 16/30 grade silica sand and gravel combinations or active filtration glass media (AFM Grades 1, 2, and 3) based on the specific model capacity.
