Hydroswim Sand Filters

Description

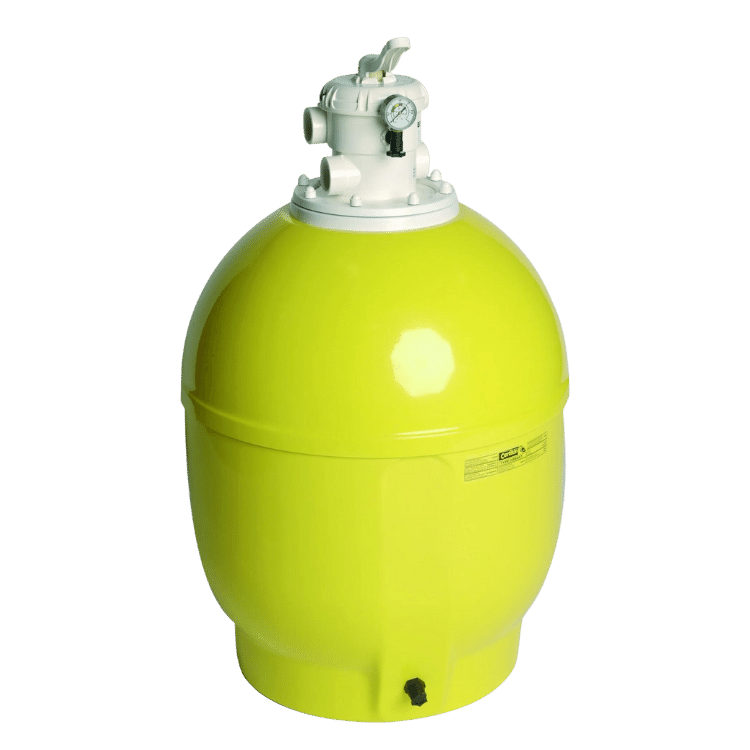

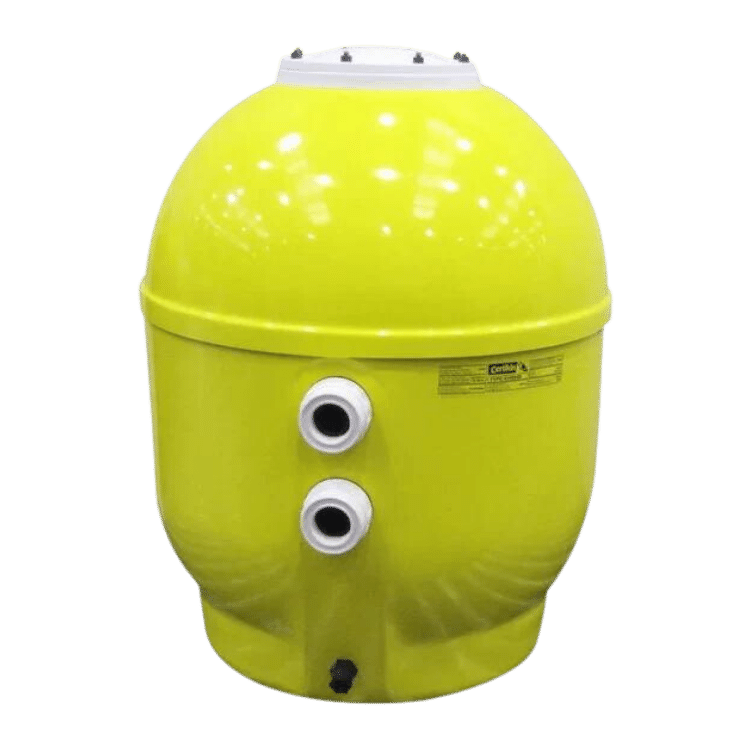

The Hydroswim sand filters from Certikin is available with either a top or a side mount multiport 6-way valve. They are laminated polyester filters manufactured from reinforced polyester resin and glass fibre. The Hydroswim range consists of 4 models:

• 20” (520mm) – side & top mount
• 25” (640mm) – side & top mount
• 30” (760mm) – side & top mount
• 36” (900mm) – side mount only

The Hydroswim filters come with a pressure gauge, manual water drain and a manual air vent and are fitted with a 6-way multiport valve. This quality sand filter is made for domestic swimming pools and filters with a 6-way multiport valve for; filtration, backwashing, rinsing, recycling, draining & closing. The Hydroswim is complete with a large clear lid to view the sand media and is an affordable pool filter that doesn’t compromise on quality.

The maximum working pressure is 2.5 bar (test pressure 3 Bar) and the filtration velocity is 50m3/h/m2.

Features:

• Reinforced Polyester Resin and Glass Fibre Sand Filter
• Fitted with Pressure Gauge, Manual Water Drain, Manual Air Vent
• Large 200mm transparent lid – resistant to chlorine, baquacil and salt
• Includes Praher 6-way valve
• Maximum Working Pressure 2.5 Bar (Test Pressure 3 Bar)
• Filtration Velocity 50m3/h/m2
• 10 year tank warranty
• DWG available
• Contact us if you have any questions

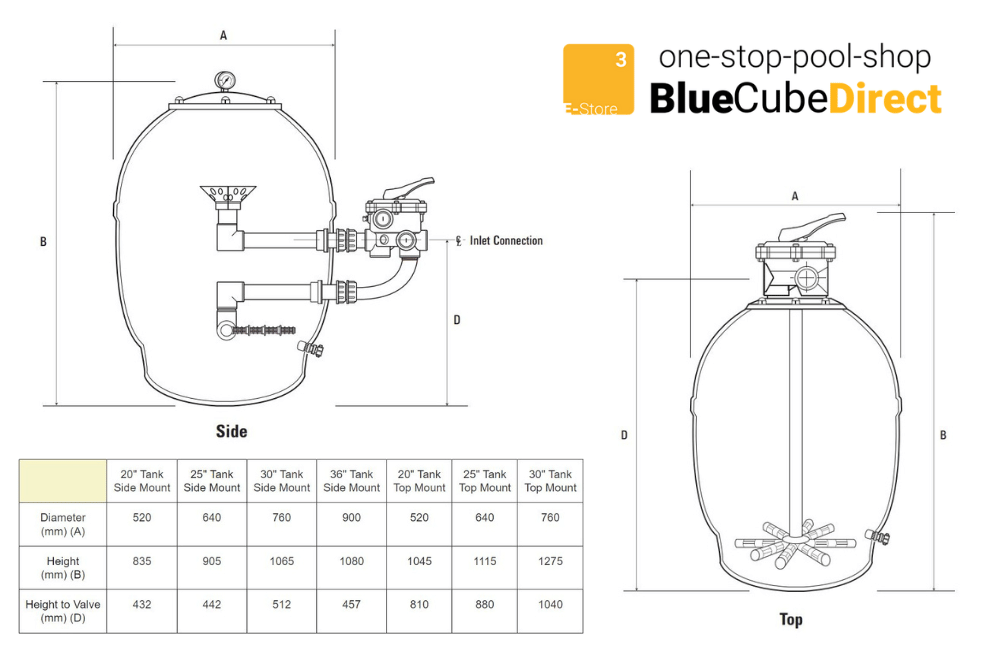

Dimensions:

Technical Information:

Warranty:

Certikin Hydroswim sand filters are recommended for domestic pools and have a warranty of:

• 10-year warranty (tank)

This warranty is only for domestic use and does not extend to commercial use of the sand filter.

Downloads:

• Brochure
